The drive belt is an essential part of the self-propel system on a petrol lawnmower. It transfers power from the engine to the gearbox, allowing the mower to drive forward when the self-propel lever is engaged.
This guide explains how to replace or refit the drive belt if it has become worn, damaged or has slipped off the pulleys.
Quick Answer
If your petrol lawnmower is not self-propelling, inspect the drive belt for damage or signs that it has slipped off the pulleys.
To replace or refit the drive belt:
- Remove the spark plug cap and safely access the underside of the mower.
- Remove the belt cover if fitted.
- Route the belt around the gearbox pulley.
- Align the belt with the engine pulley.
- Rotate the blade by hand to seat the belt correctly.
- Check the belt is correctly aligned before using the mower.
A belt that is cracked, stretched or badly worn should always be replaced.
Before You Begin
Before carrying out this repair:
- Switch off the engine and allow it to cool completely.
- Remove the spark plug cap to prevent accidental starting.
- Wear suitable protective gloves.
- Position the mower on a stable surface.
- If the mower needs to be inverted, follow the manufacturer's recommendations to prevent fuel or oil leaks.
Tools you may need:
- Screwdriver
- Socket or spanner
- Replacement drive belt (if required)
Inspect the new belt before installation to ensure it matches the original in size and profile.
Steps
Step 1 – Inspect the Drive Belt
Before removing or replacing the belt, inspect it for:
- Cracks.
- Fraying.
- Stretching.
- Missing sections.
- Signs that it has slipped from the pulleys.
If the belt is damaged, replace it. If it has simply come off, it may only need to be refitted.
Step 2 – Remove the Belt Cover (If Fitted)
Some mower models have a protective belt cover.
To remove it:

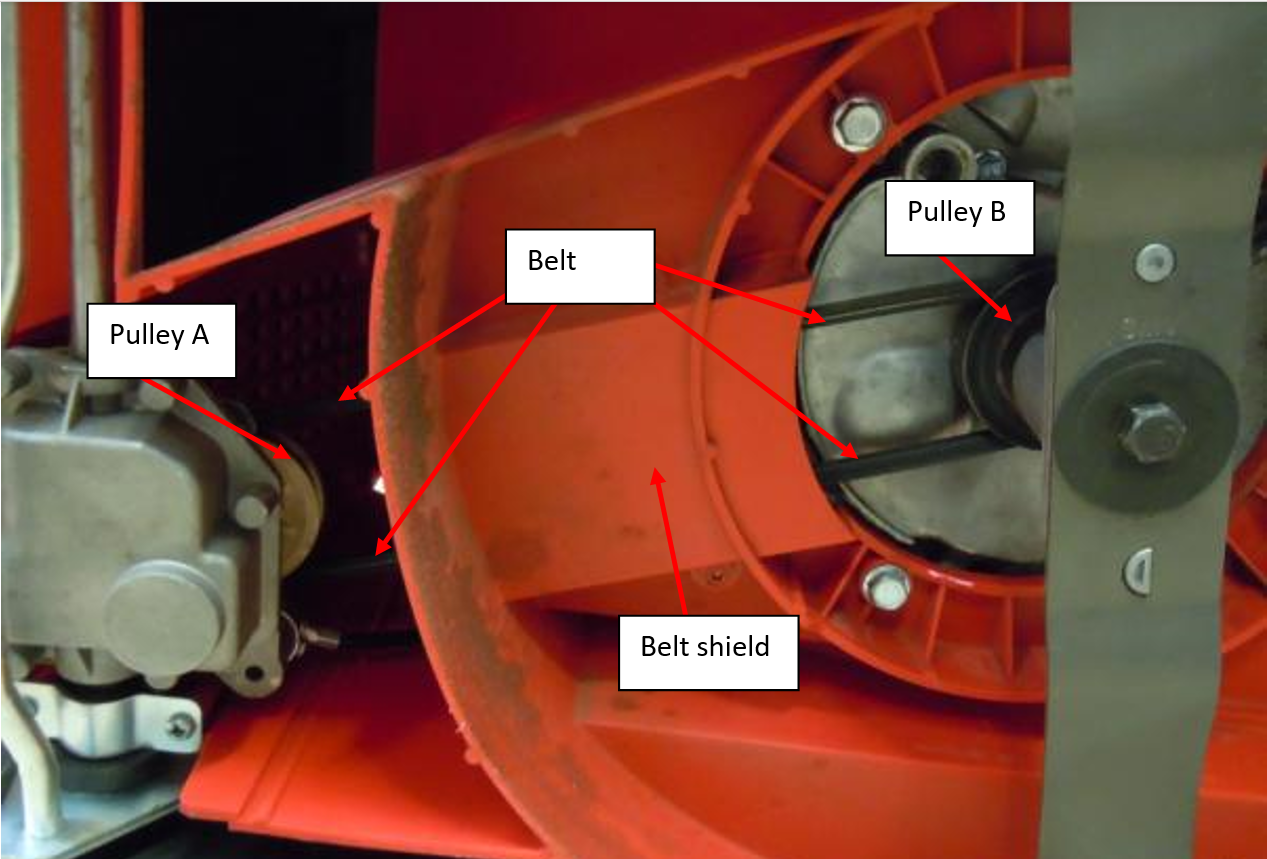

- Locate the belt cover between the blade assembly and gearbox.
- Remove the retaining screws or fixing bolts.
- Lift the cover away to expose the drive belt and pulleys.
Step 3 – Position the Belt
Feed the drive belt around the blade area first.
Do not fully fit the belt onto the engine pulley at this stage.
Ensure the belt is routed correctly and is not twisted.
Step 4 – Route the Belt Through the Deck
Guide the belt underneath the belt guide or mower deck as designed.
Check that:
- The belt is sitting correctly.
- It is not trapped beneath the belt guard.
- There are no twists along its length.
Step 5 – Fit the Belt to the Gearbox Pulley
Loop the belt around the gearbox pulley.
The gearbox may move slightly as tension is applied, which is normal.
Ensure the belt sits fully within the pulley groove.
Step 6 – Fit the Belt to the Engine Pulley
Position the belt in line with the engine or blade drive pulley.
While wearing protective gloves:
- Slowly rotate the blade by hand.
- Allow the belt to walk onto the engine pulley naturally.
- Continue rotating until the belt is fully seated.
Do not force the belt onto the pulley using tools, as this may damage the belt.
Step 7 – Check Belt Alignment
Before reassembling the mower:
- Check that the belt sits correctly in both pulley grooves.
- Ensure there are no twists.
- Rotate the blade by hand to confirm the belt runs smoothly.
- Refit the belt cover if it was removed.
Reconnect the spark plug cap and test the self-propel function in a safe area.
Frequently Asked Questions
What does the drive belt do on a petrol lawnmower?
The drive belt transfers power from the engine to the gearbox, allowing the self-propel system to drive the mower forward.
How do I know if my drive belt needs replacing?
Replace the belt if it is cracked, frayed, stretched, glazed or has become damaged. A belt that has simply slipped off may only need to be refitted.
Why has my lawnmower drive belt come off?
The belt can come off due to wear, incorrect tension, damaged pulleys, impact damage or because another component has been removed during maintenance.
Can I reuse a drive belt that has slipped off?
Yes. If the belt is in good condition and shows no signs of damage or excessive wear, it can usually be refitted.
Why is my self-propel still not working after replacing the drive belt?
If the self-propel system still does not operate, inspect the drive cable, gearbox, pulleys and drive mechanism for wear or damage. The fault may not be caused by the drive belt alone.
Should the drive belt be tight?
Yes. The belt should have sufficient tension to transfer power efficiently while remaining correctly seated on both pulleys. Excessive slack or twisting can prevent the self-propel system from operating correctly.
