The blade adapter (also known as the blade carrier or blade boss) connects the cutting blade to the engine crankshaft. If it becomes damaged after striking a hard object, it should be replaced before the lawnmower is used again to prevent excessive vibration and further damage.
This guide explains how to replace the blade adapter on the Challenge XSZ40E petrol lawnmower.
Quick Answer
To replace the blade adapter on a Challenge XSZ40E petrol lawnmower:
- Remove the blade.
- Lift the belt pulley to the top of the crankshaft.
- Align the blade adapter with the pulley.
- Rotate the adapter anti-clockwise to lock it into position.
- Push the pulley and adapter fully onto the crankshaft.
- Refit the blade and tighten the blade bolt securely.
Always check that the blade adapter is fully engaged before operating the lawnmower.
Before You Begin
Before carrying out this repair:
- Switch off the engine and allow it to cool completely.
- Remove the spark plug cap to prevent accidental starting.
- Wear suitable personal protective equipment (PPE), including protective gloves.
- Place the lawnmower on a stable, level surface.
The Challenge XSZ40E uses a two-piece blade adapter system consisting of a disc pulley and a T-shaped blade adapter. These components must be correctly aligned during installation.
Steps
Step 1 – Remove the Blade
Remove the blade retaining bolt using a suitable socket or spanner.
Carefully remove:
- The blade.
- The retaining washer, if fitted.
Place all components somewhere safe for reassembly.

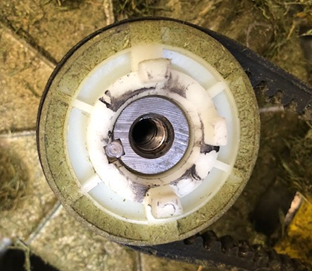

Step 2 – Position the Belt Pulley
Lift the belt pulley upwards until it reaches the top of the crankshaft.
This provides enough clearance to install the blade adapter correctly.

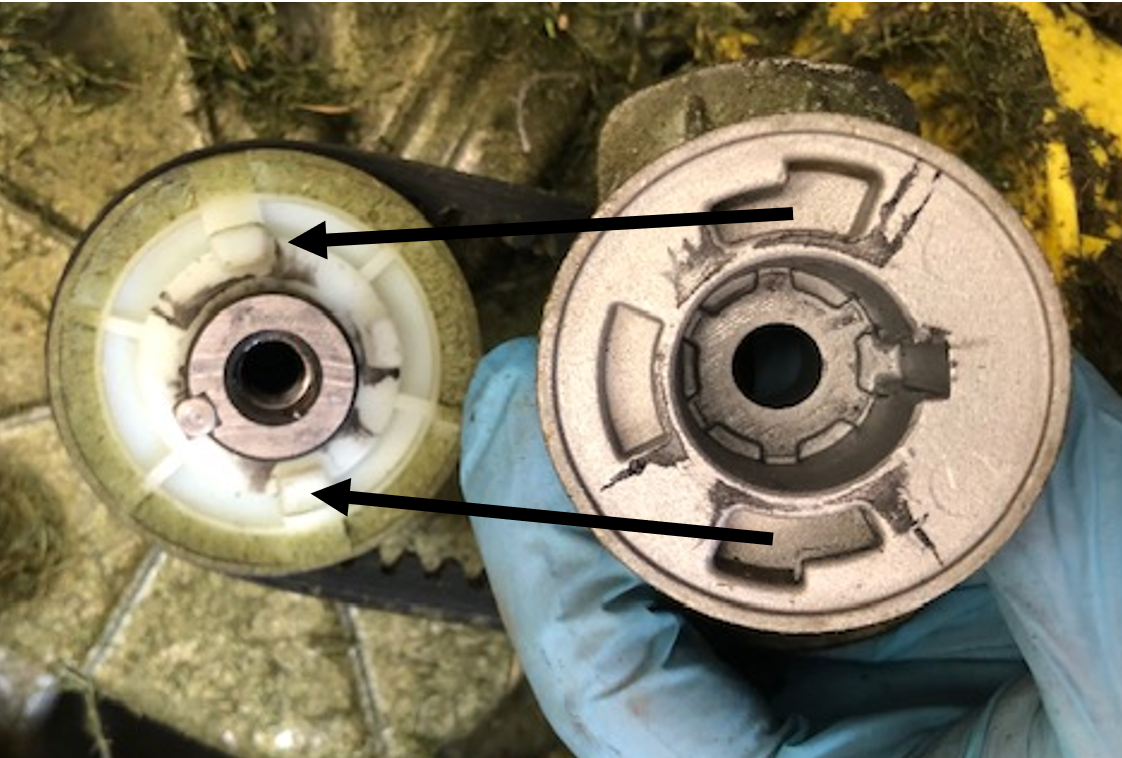

Step 3 – Align the Blade Adapter
Position the T-shaped blade adapter beneath the pulley.
Ensure the two engagement clips align correctly with the corresponding slots in the disc pulley.
Rotate the blade adapter anti-clockwise until it locks into the pulley.
Step 4 – Seat the Assembly
Push the blade adapter and pulley assembly downward together until they are fully engaged on the crankshaft.
Check that:
- The adapter sits flush.
- The pulley is correctly positioned.
- There is no excessive movement.
Step 5 – Refit the Blade
Position the blade onto the blade adapter.
Install the blade retaining bolt and tighten it securely.
Ensure the blade is fitted in the correct orientation and is firmly secured.
Frequently Asked Questions
What is the blade adapter?
The blade adapter connects the cutting blade to the engine crankshaft and transfers engine power to the blade. It is also designed to absorb impact if the blade strikes a solid object.
How do I know if the blade adapter is damaged?
Common signs include excessive vibration, a loose blade, visible cracks or distortion, and uneven cutting performance.
Why does the XSZ40E blade adapter look different?
The Challenge XSZ40E uses a two-piece system consisting of a disc pulley and a T-shaped blade adapter, which must be interlocked before being fitted onto the crankshaft.
Can I continue using the lawnmower with a damaged blade adapter?
No. A damaged blade adapter can allow the blade to become loose, increase vibration and potentially cause further damage to the engine.
Should I inspect anything else while replacing the blade adapter?
Yes. Check the blade for damage, ensure the drive belt is correctly seated, and inspect the crankshaft for signs of bending or wear.
What should I check before using the lawnmower?
Before starting the engine, ensure the blade is securely fitted, the blade adapter is fully engaged, the drive belt is correctly positioned and the blade rotates smoothly by hand with the spark plug disconnected.
