A damaged or worn exhaust can cause excessive engine noise, reduced performance or exhaust leaks. Replacing the exhaust assembly on your SE475 engine helps restore normal operation and ensures exhaust gases are directed away safely.
This guide explains how to remove and replace the exhaust assembly on an SE475 engine.
Quick Answer
To replace the exhaust on an SE475 engine:
- Remove the two 10mm retaining nuts.
- Remove the exhaust cover.
- Detach the old exhaust assembly.
- Check the exhaust gasket is correctly positioned.
- Fit the new exhaust assembly.
- Refit the cover and tighten the retaining nuts securely.
- Start the engine and check for exhaust leaks.
Before You Begin
Before carrying out this repair:
- Switch off the engine and allow it to cool completely.
- Remove the spark plug cap to prevent accidental starting.
- Work in a well-ventilated area.
- Wear suitable personal protective equipment (PPE), including protective gloves.
- Ensure the replacement exhaust and gasket are suitable for your SE475 engine.
Tools required:
- 10mm spanner or socket wrench
Steps
Step 1 – Remove the Exhaust Retaining Nuts

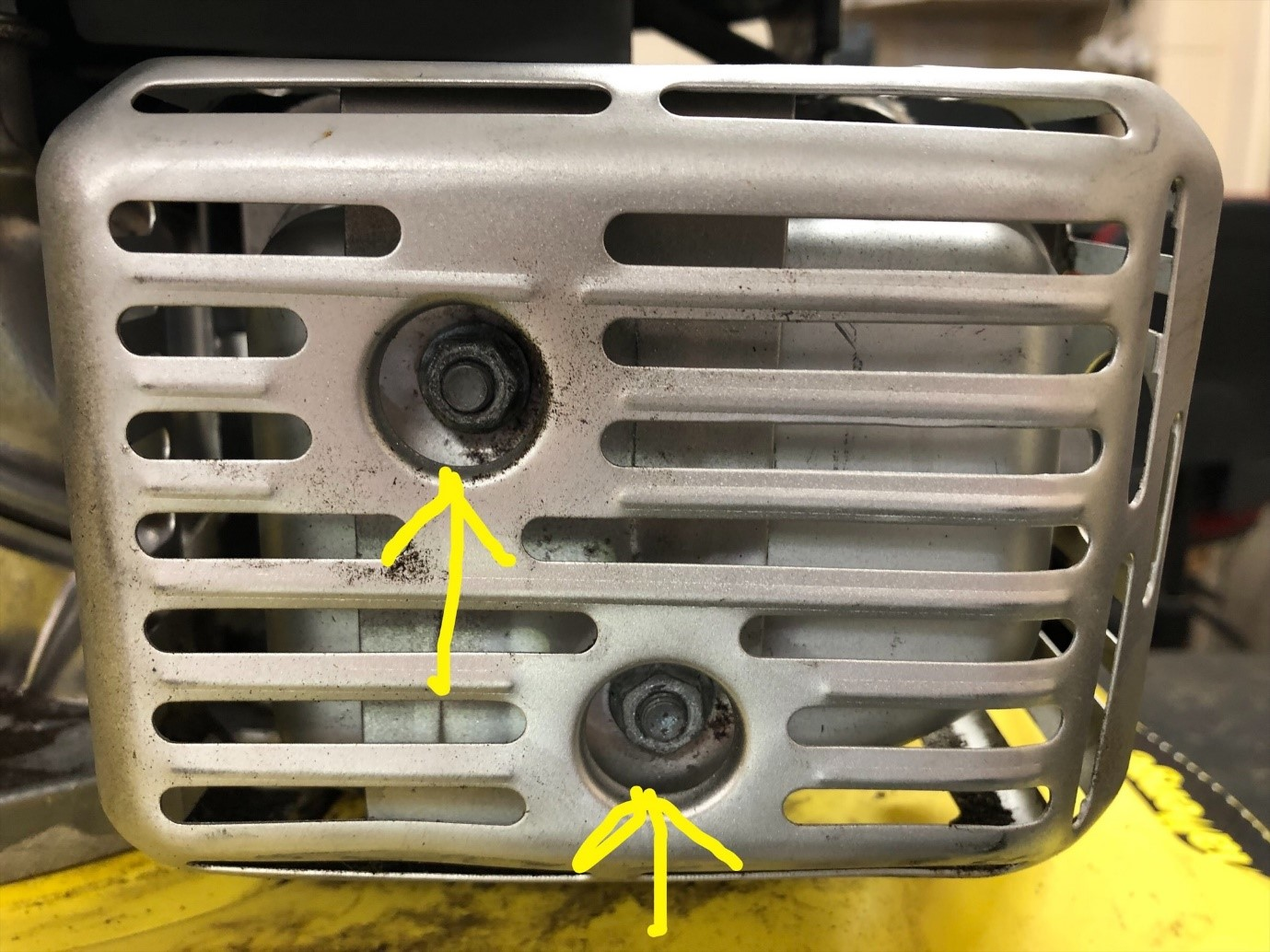

Locate the two 10mm retaining nuts that secure the exhaust assembly to the engine.
Using a 10mm spanner or socket wrench:
- Remove both retaining nuts.
- Keep the nuts in a safe place for reassembly.
Step 2 – Remove the Exhaust Cover
Carefully lift the exhaust cover away from the engine.
Place it to one side and take care not to damage any surrounding components.
Step 3 – Remove the Exhaust Assembly
With the cover removed:
- Carefully pull the exhaust assembly away from the engine.
- Remove it from the mounting studs.
- Set the old exhaust aside safely.

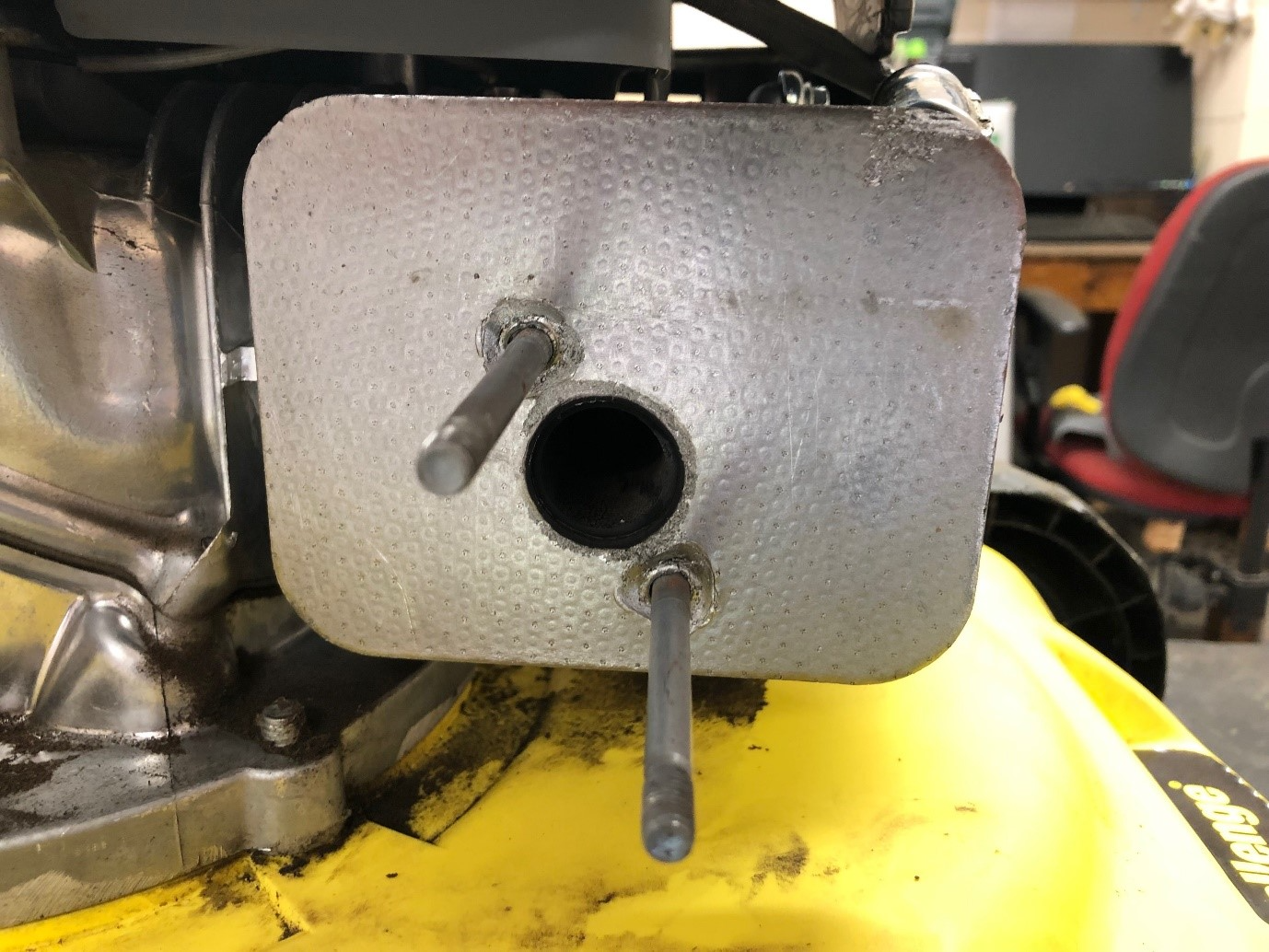

Step 4 – Check the Exhaust Gasket
Before fitting the new exhaust:
- Inspect the exhaust heat gasket.
- Ensure it is correctly positioned.
- Replace the gasket if it is damaged, worn or missing.
A damaged gasket can cause exhaust leaks and increased engine noise.

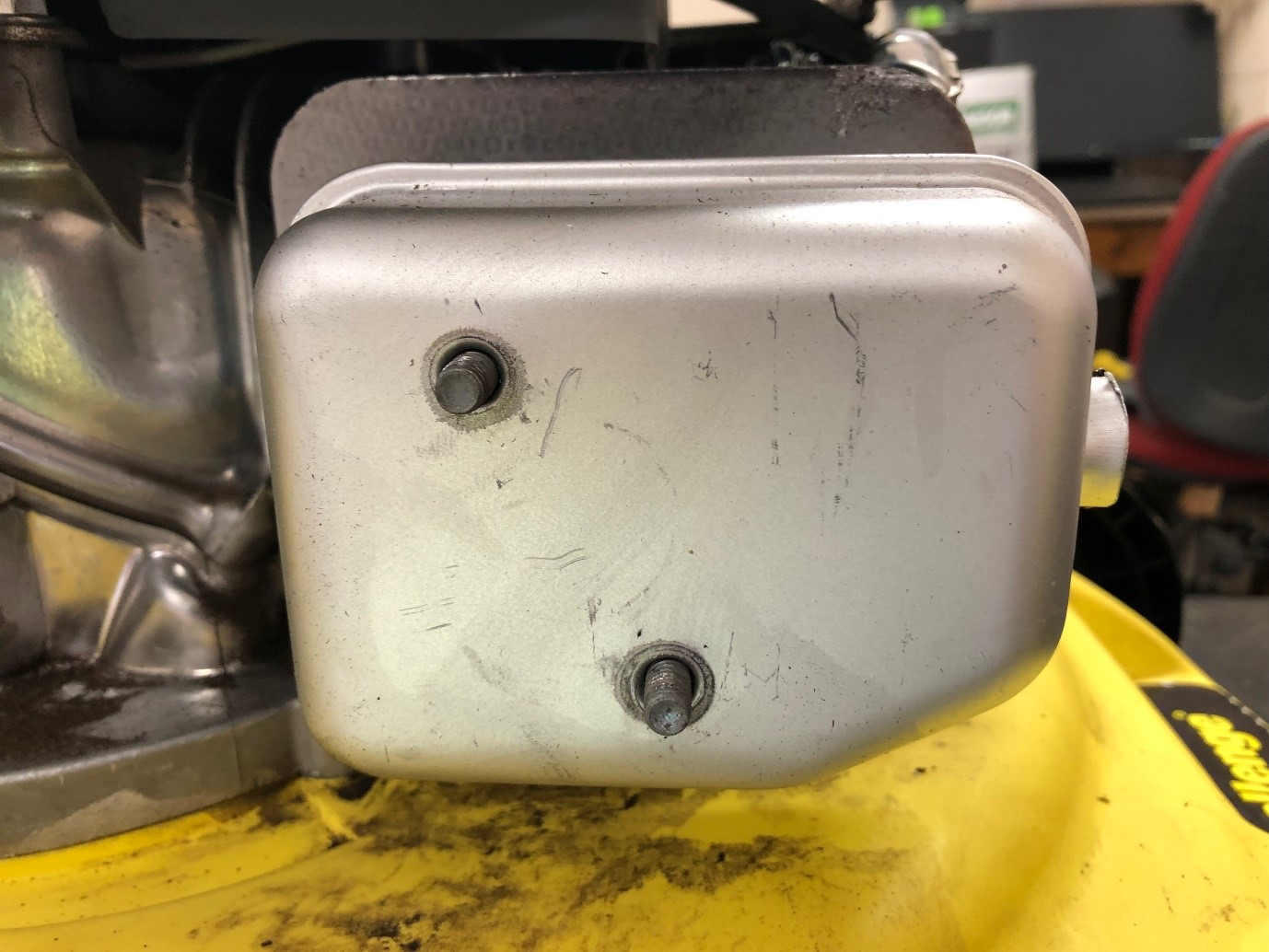

Step 5 – Fit the New Exhaust Assembly
Position the new exhaust onto the mounting points.
Ensure:
- The exhaust sits flush against the engine.
- The gasket remains correctly aligned.
- The mounting holes line up correctly.
Step 6 – Refit the Exhaust Cover
Position the exhaust cover back onto the engine.
Ensure it sits correctly before securing it.
Step 7 – Secure the Exhaust
Refit the two 10mm retaining nuts.
Tighten them evenly until the exhaust is secure.
Do not overtighten, as this may damage the mounting studs or exhaust assembly.
Frequently Asked Questions
Why would I need to replace the exhaust?
An exhaust may need replacing if it has become rusted, cracked, damaged or excessively noisy, or if exhaust gases are leaking from the assembly.
Should I replace the exhaust gasket?
Yes. If the gasket is damaged, compressed or worn, it should be replaced to ensure a proper seal and prevent exhaust leaks.
Can I use the engine with a damaged exhaust?
No. A damaged exhaust can increase engine noise, allow hot exhaust gases to escape and may affect engine performance.
Why is my new exhaust leaking?
The most common causes are a damaged gasket, incorrect alignment or retaining nuts that are not tightened evenly.
How tight should the retaining nuts be?
Tighten the nuts evenly until the exhaust is firmly secured. Avoid overtightening, as this may damage the mounting studs or exhaust.
What should I check before using the engine?
Confirm that the exhaust is securely fitted, the gasket is correctly seated, there are no loose components, and the engine runs without unusual noise or visible exhaust leaks.
